http://www.raspberrypi.org/
http://www.raspbian.org/
http://elinux.org/RaspberryPiBoard

---

Raspbian

---

http://www.raspberrypi.org/documentation/installation/installing-images/README.md
http://elinux.org/RPi_Easy_SD_Card_Setup
Format SD Card

Windows
https://www.raspberrypi.org/documentation/installation/installing-images/windows.md
http://sourceforge.net/projects/win32diskimager/
Linux
https://www.raspberrypi.org/documentation/installation/installing-images/linux.md
dd
Mac
https://www.raspberrypi.org/documentation/installation/installing-images/mac.md

Enpacken ab 4GB:
$ tar -xzvf image.img

---

Tag 1
Tag 2

---

unix-refcard.pdf
http://wiki.ubuntuusers.de/Shell/Einf%C3%BChrung
http://www.linux-services.org/shell/

---

http://embeddedartist.dernulleffekt.de/doku.php?id=ip_and_network
Static IP Address

---

Win:
http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html
X11-forwarding on Windows
X-Win
X11 forwarding on Mac:
https://www.xquartz.org/

---

VNC server on the Raspberry Pi
http://embedded-artist.net/doku.php?id=vnc
https://www.raspberrypi.org/documentation/remote-access/vnc/
VNC client on the PC
Linux
Mac
Win\\ Tightvnc for Win

---

with sftp and the “IP-Address” up- and download files.
https://cyberduck.io/
https://filezilla-project.org/

---

https://www.raspberrypi.org/documentation/usage/python/
Python 3 Cheat Sheet
Make Games with Python

---

http://omxplayer.sconde.net/
http://elinux.org/Omxplayer
Pyomxplayer
http://embedded-artist.net/doku.php?id=python_omxplayer
pyomxplayer.py.tar

 $ sudo apt-get install libpcre3 fonts-freefont-ttf python-pexpect
 $ wget http://dernulleffekt.de/programme/pyomxplayer.py.tar
 $ tar -xvf pyomxplayer.py.tar
 $ sudo chmod 755 pyomxplayer.py
 $ sudo cp pyomxplayer.py /usr/local/lib/python2.7/dist-packages

Sync Video
https://github.com/turingmachine/omxplayer-sync

---

http://www.raspberrypi.org/documentation/raspbian/applications/camera.md
https://www.raspberrypi.org/documentation/usage/camera/raspicam/raspivid.md
https://www.raspberrypi.org/documentation/usage/camera/raspicam/raspistill.md
http://www.raspberrypi.org/wp-content/uploads/2013/07/RaspiCam-Documentation.pdf

---

Picamera
https://www.raspberrypi.org/learning/getting-started-with-picamera/worksheet/

https://picamera.readthedocs.io/en/release-1.12/index.html
http://embedded-artist.net/doku.php?id=picamera

Change H264 to mp4

$ sudo apt-get install gpac
$ MP4Box -add filename.h264 filename.mp4

---

http://www.howtoembed.com/projects/raspberry-pi/78-pieye-webcam-streaming-in-m-jpg-format-with-raspberry-pi
https://support.ustream.tv/hc/en-us/articles/207852457-Raspberry-Pi-Streaming-video-to-Ustream
http://raspi-sec.com/index.html
http://www.slblabs.com/2012/09/26/rpi-webcam-stream/
UV4L
http://www.linux-projects.org/uv4l/
http://www.linux-projects.org/uv4l/installation/

$ curl http://www.linux-projects.org/listing/uv4l_repo/lrkey.asc | sudo apt-key add -
$ sudo nano /etc/apt/sources.list
Einfügen: deb http://www.linux-projects.org/listing/uv4l_repo/raspbian/ jessie main
$ sudo apt-get update
$ sudo apt-get install uv4l uv4l-raspicam uv4l-raspicam-extras uv4l-server
$ sudo service uv4l_raspicam restart

http://myIP:8080
configuration:

$ sudo nano /etc/uv4l/uv4l-raspicam.conf

Watch Random Webcams
http://watchthiscam.com/blog/2011/08/19/how-to-find-random-webcams-using-inurl-to-find-the/

---

---

Low Level Peripherals

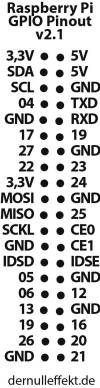

GPIO pinout-diagram

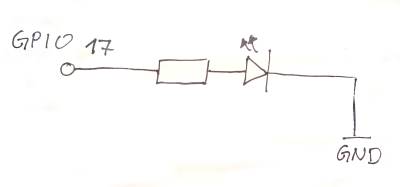

GPIO Board

Der Widerstand ist 68 Ohm.

gpio_test_programme.tar.gz

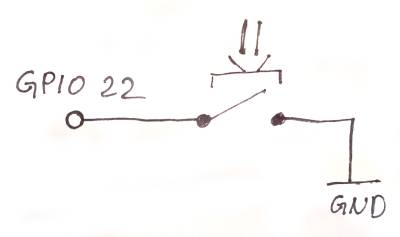

shutdownbutton.tar.gz
http://embedded-artist.net/doku.php?id=image_modifikations_jessie#script

---

The MagPi:
https://www.raspberrypi.org/magpi/

Elektronikwissen:
http://www.elektronik-kompendium.de

Led Vorwiderstand berechnen:
http://www.spaceflakes.de/led-rechner/

Datenblätter:
http://www.datasheetarchive.com
http://www.alldatasheet.com
